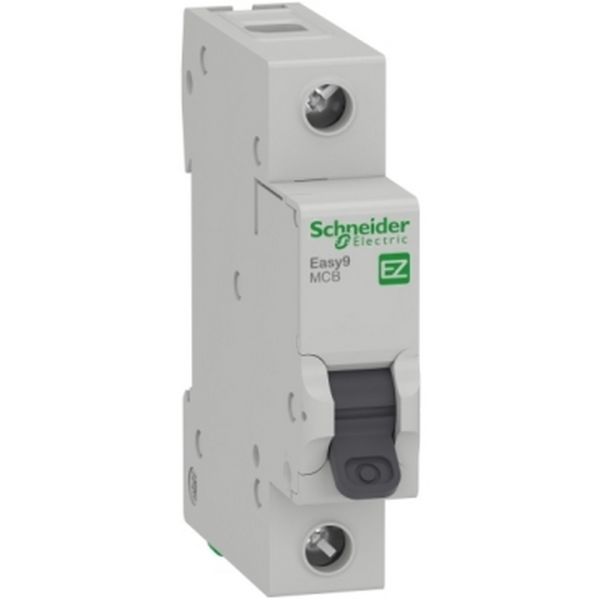

Schneider Electric Easy9 1P 10A C curve 6000A 230V miniature circuit breaker EZ9F56110

About this item:

• This Easy9 product is a low voltage miniature circuit breaker (MCB).
• It is a 1P circuit breaker with 1 protected pole and 10A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6000A at 230VAC conforming to IEC 60898-1 standard.
• This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved).
• This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles.
• [Ue] rated operational voltage - 230 V AC 50 Hz  127 V AC 50 Hz
• Dimensions - (W) 18mm x (H) 81mm x (D) 66.5mm
• Color - Grey
