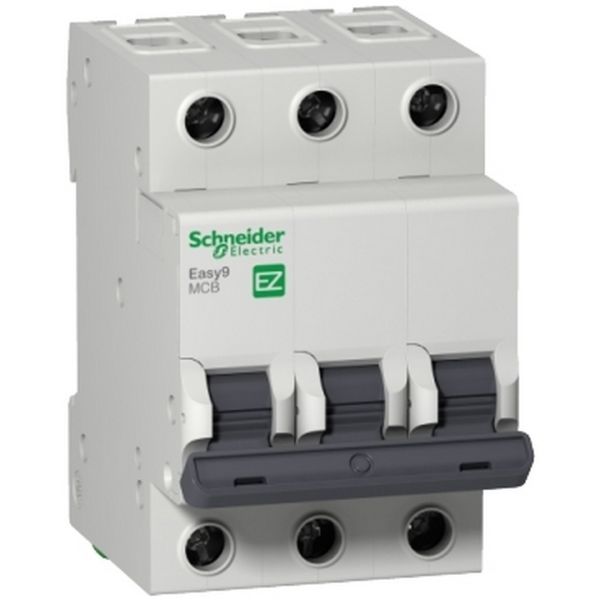

Schneider Electric Easy9 Miniature Circuit Breaker 3P 16A C curve 6000A MCB 400V EZ9F56316

About this item:

• This Easy9 product is a low-voltage miniature circuit breaker (MCB).
• It is a 3P circuit breaker with 3 protected poles and 16A In-rated current and C tripping curve.
• Rated Service Breaking Capacity - 6 kA 100 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
• Rated Insulation Voltage - 500 V AC 50/60 Hz conforming to IEC 60898-1
• rated impulse withstand voltage - 4 kV conforming to IEC 60898-1
• Breaking Capacity - 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1, 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
• This product protects against short circuits and protects cables against overloads. It has a fault-tripping indication on the front panel by the position of the handle (O-I engraved).
• This product is dedicated to residential and small commercial buildings.
• dimensions - (W) 54mm x (H) 81mm x (D) 66.5mm
